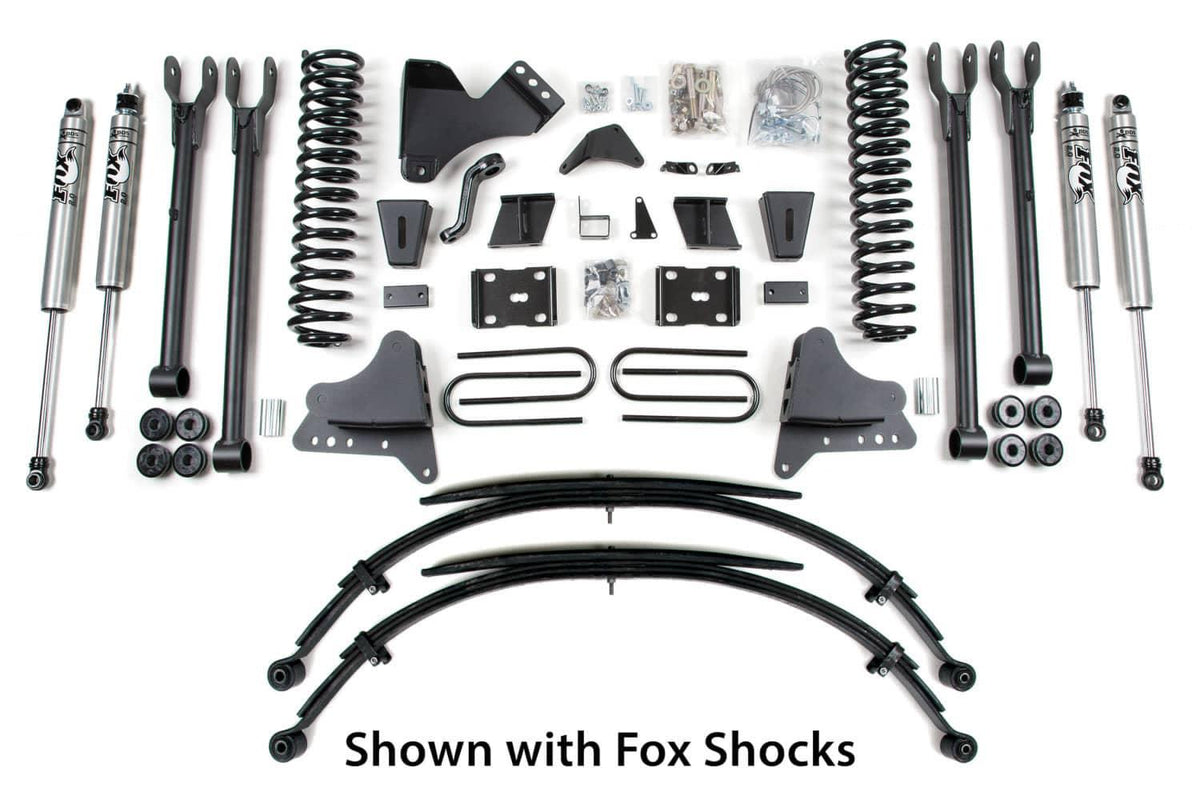

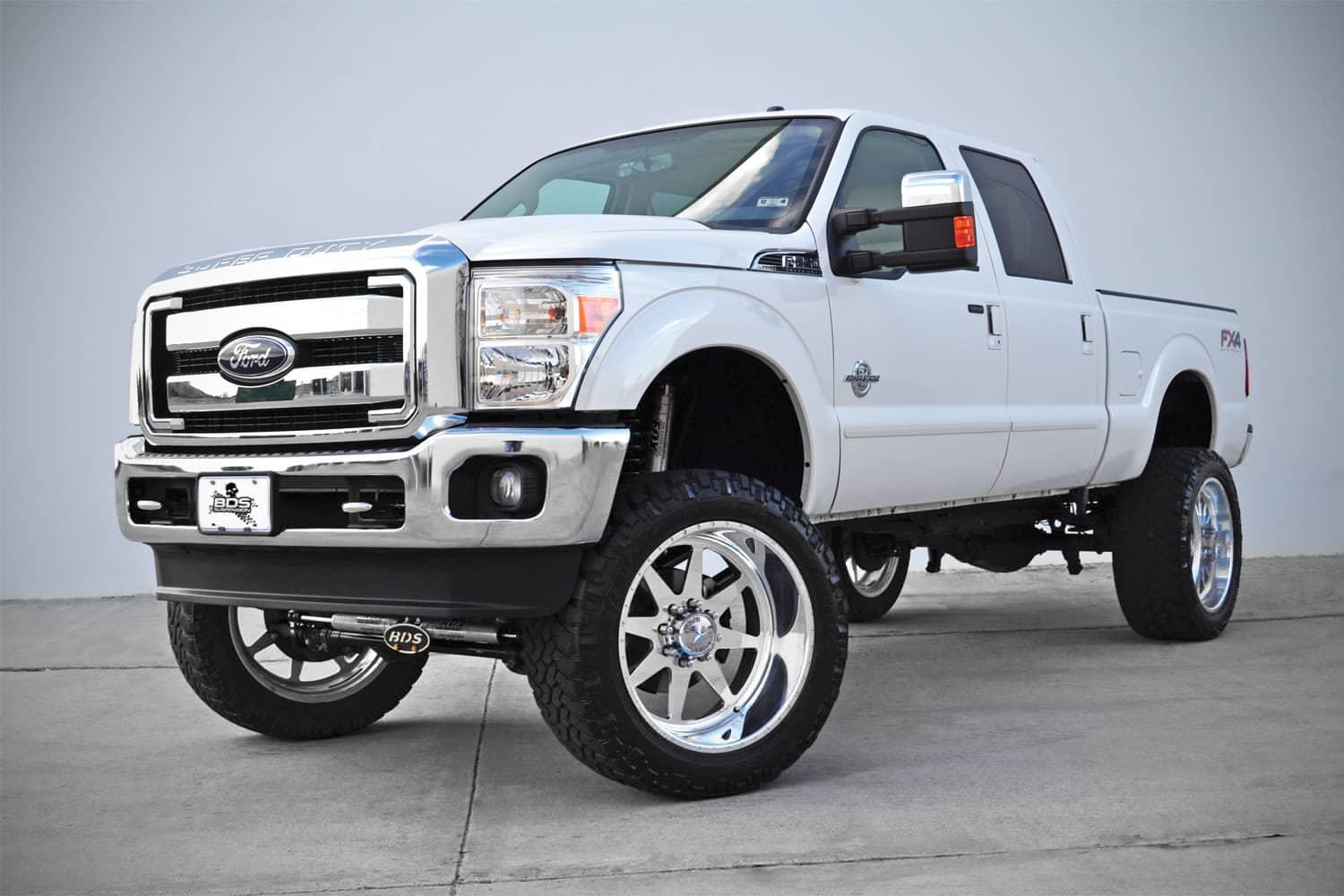

BDS 8" 4-LINK LIFT KIT WITH NX2 SHOCKS | 11-16 SUPER DUTY 4WD DIESEL
Easy, 100% Bolt-on installation.
Pro-Ride dual rate coil springs provide a remarkable ride through any terrain.
Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel.
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling.
Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring.
Standard NX2 Nitro shocks with vehicle-specific valving for better control.
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road.
Important Note: Front bumper spacer kit may be required to run 38"x15.50" tires. Although extremely rare, front driveline vibration may occur. If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required. Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required. If equipped with a rear sway bar, #123009 is required. U-bolts will not work on dually. Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone. BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.
