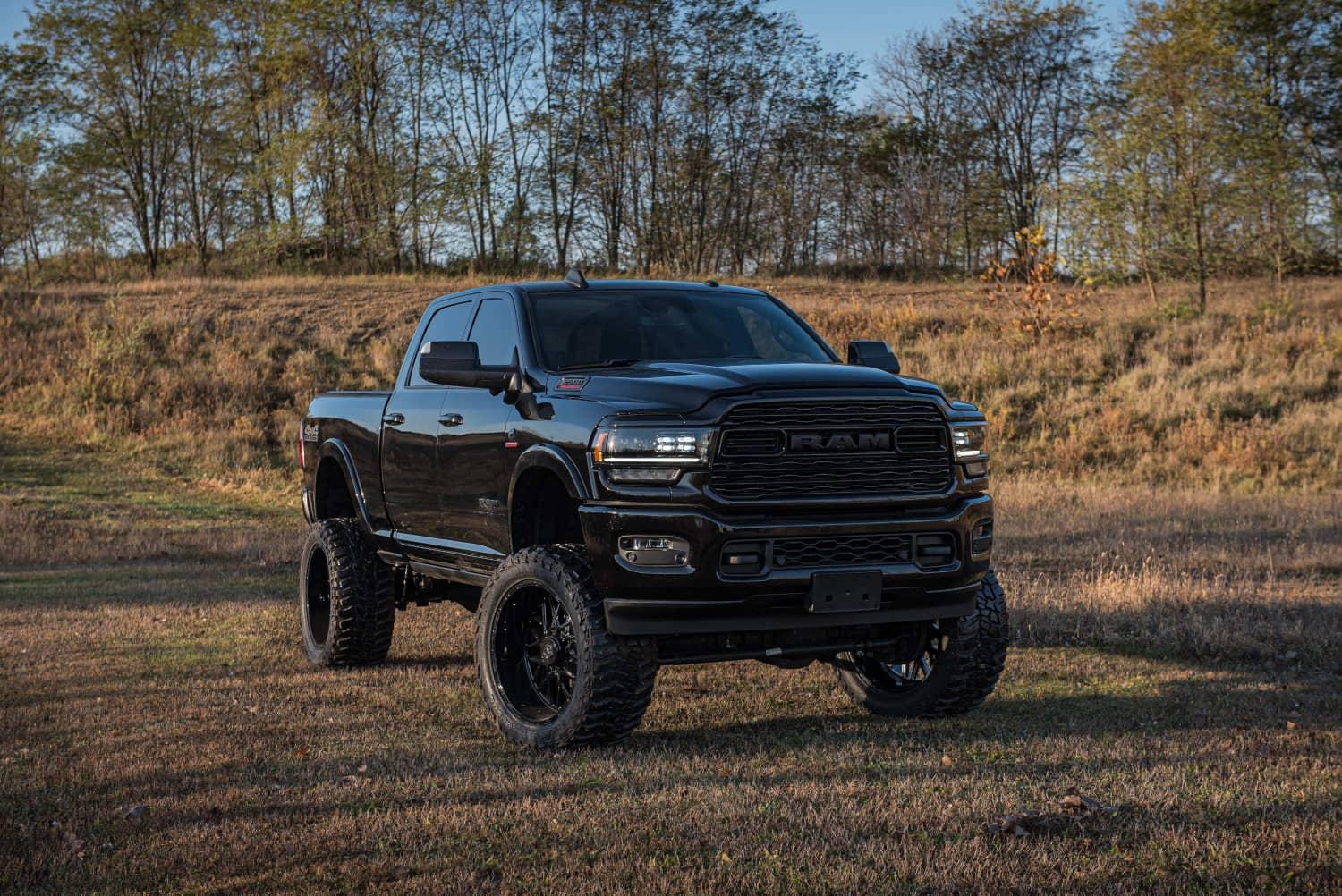

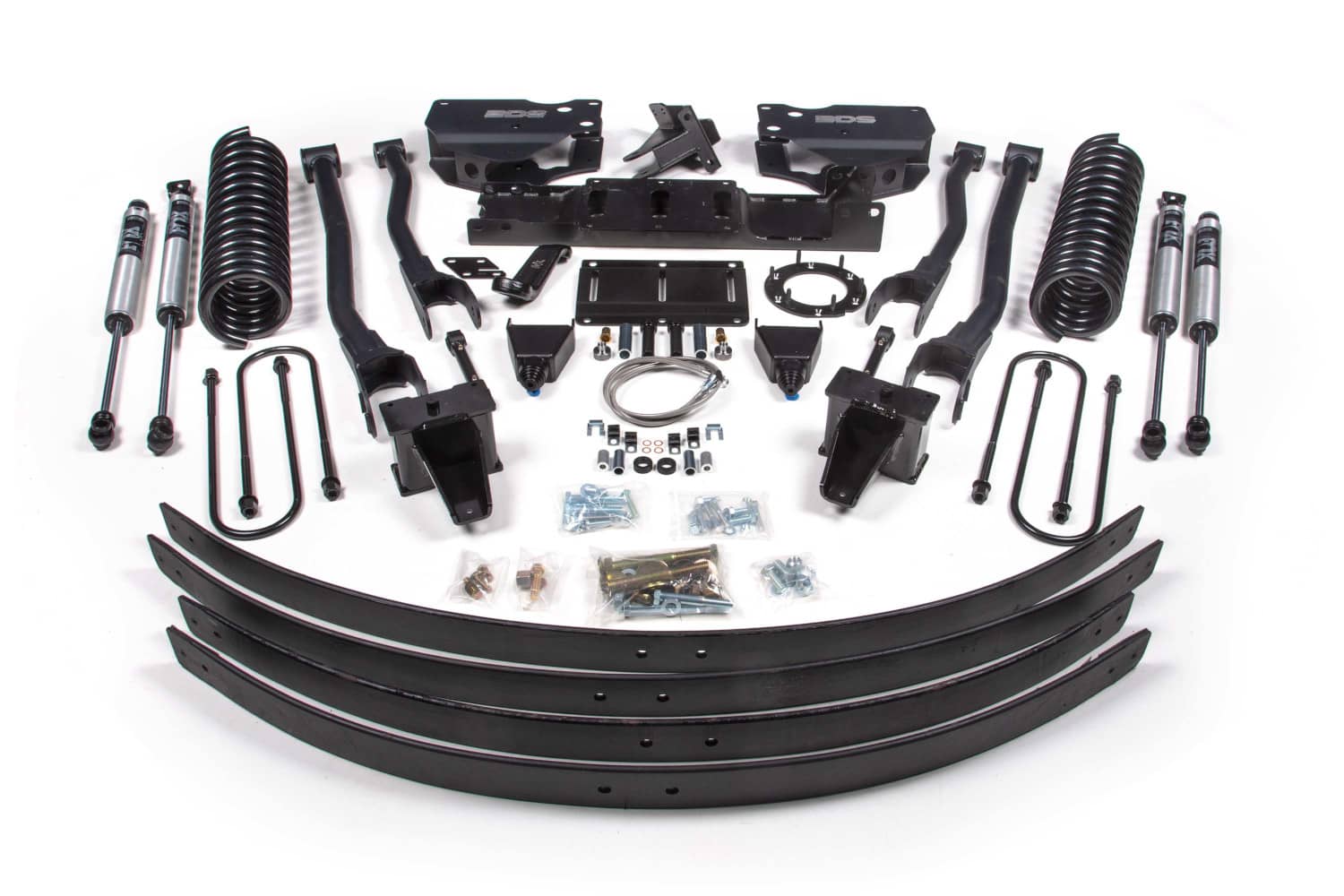

BDS 8" LIFT KIT WITH NX2 SHOCKS | 19-24 RAM 3500 4WD DIESEL 4-LINK WITHOUT OVERLOADS AND WITH 6-BOLT INDEXING RING
Heavy duty 4-link improve strength, handling and caster control.
Front high strength progressive rate coil springs for a great ride on any terrain.
Front track bar relocation bracket to re-position axle.
Forged drop pitman arm to correct steering angles.
Front sway bar correction to maintain handling performance.
HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts.
BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance.
Important Note: Does not fit OE equipped air ride systems. Recoil Traction Bars Recommended. Vehicles equipped with a Manual T-case requires BDS-122423 Manual transfer case shifter extension. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS-122406 Carrier bearing drop. This kit requires the use of an aftermarket front driveshaft (not provided) in addition to the (provided) indexing ring kit BDS-122624 (6-bolt) or BDS-122421 (8-bolt). Both must be installed, however due to variations between truck configurations we recommend installing the kit prior to taking measurements for the aftermarket front driveshaft to ensure correct length. Vehicle can be driven without front driveshaft. Kit was tested with a Drive Line Plus flange and driveshaft, however other high angle driveshaft options can be used.
