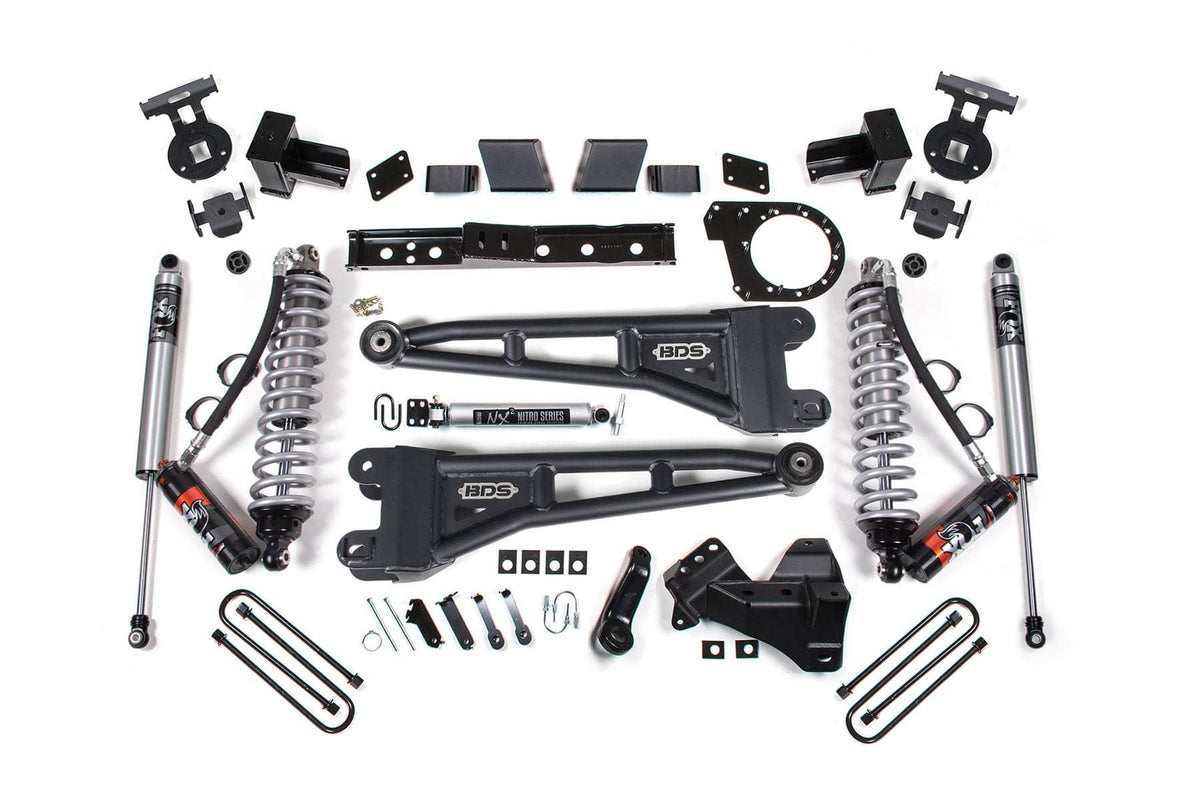

BDS 7" RADIUS ARM SUSPENSION LIFT KIT WITH REAR BLOCK KIT AND FOX 2.5 PERFORMANCE ELITE COIL-OVERS AND SHOCKS | 23-26 F-350 SUPER DUTY DRW
Fox 2.5 Performance Elite Coilover shock mounts in the OE spring location.
Optional secondary shock in the OE shock location.
Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance.
Track bar relocation bracket and pitman arm to maintain proper steering angles for improved handling.
Fabricated steel blocks provide level stance front to rear.
Important Note: Ford recommends the replacement of the pitman arm nut after each time it has been removed. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper. If your truck is equipped with a factory rear sway bar add: BDS-123808. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS-123402. Larger tires on the stock wheels are not recommended due to the brake line clearance required. Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification of the shift cable mount will be required. Installation requires a torque wrench capable of 405 ft-lbs. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift. Vehicles with radius arm mounted ride height sensors will r
Share
Fits these vehicles
1 vehicle listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
