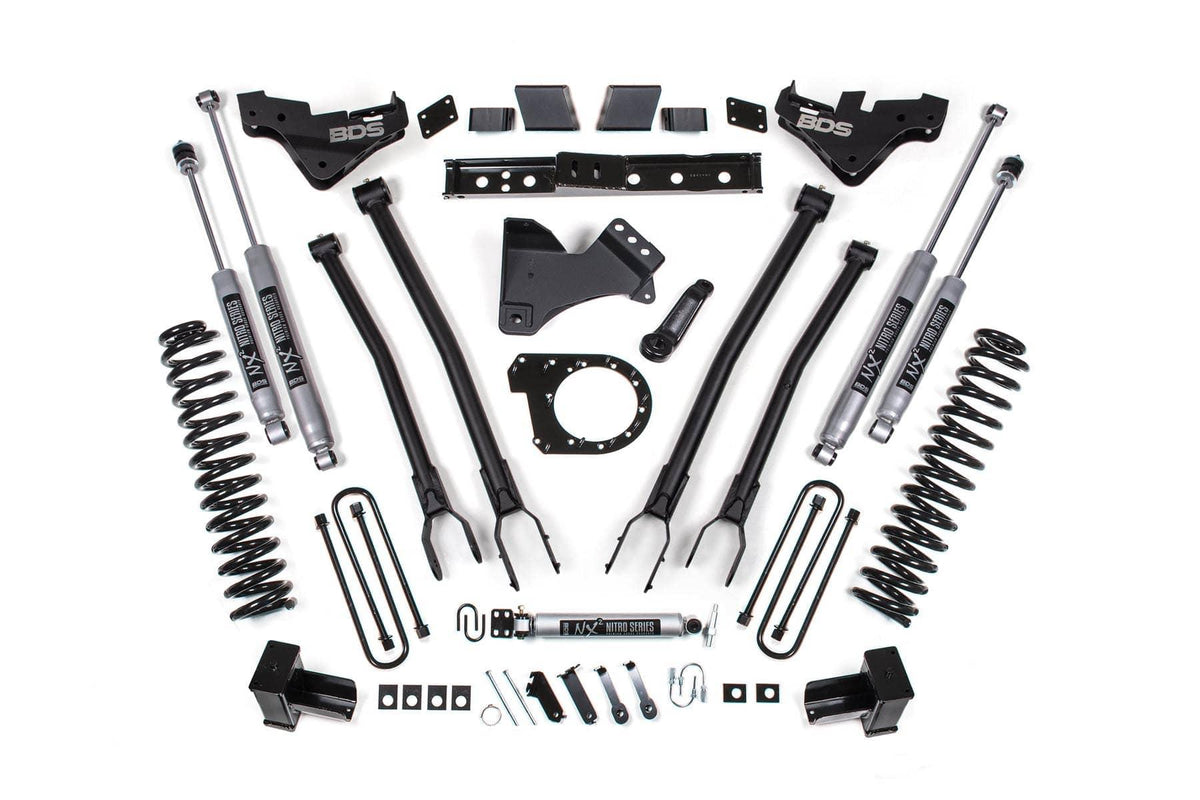

BDS 7" 4-LINK LIFT KIT WITH NX2 SHOCKS | 23-26 F-350 SUPER DUTY DUALLY DIESEL
Complete bolt-in installation.
Pro-Ride dual-rate springs provide superior ride quality vs OEM springs.
Heavy Duty 4-Link control arms offer improved handling, stability and strength.
4-Link suspension offers superior caster control through suspension travel.
Improved driveability from corrected geometry and steering angles.
Fabricated rear blocks provide a level stance from front to rear.
Important Note: Ford recommends the pitman arm nut is replaced prior to pitman arm installation. If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" BDS-UBT4027 (Qty: 4) is required. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS-123402. Larger tires on the stock wheel are not recommended due to the brake line clearance required. Minor trimming may be necessary for clearance of 38x13.50 tires on certain wheel setups. Installation requires a torque wrench capable of 405 ft-lbs. Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, BDS recommends having this performed prior to installing the lift. Recalibration of your vehicles Advanced
Share
Fits these vehicles
2 vehicles listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
