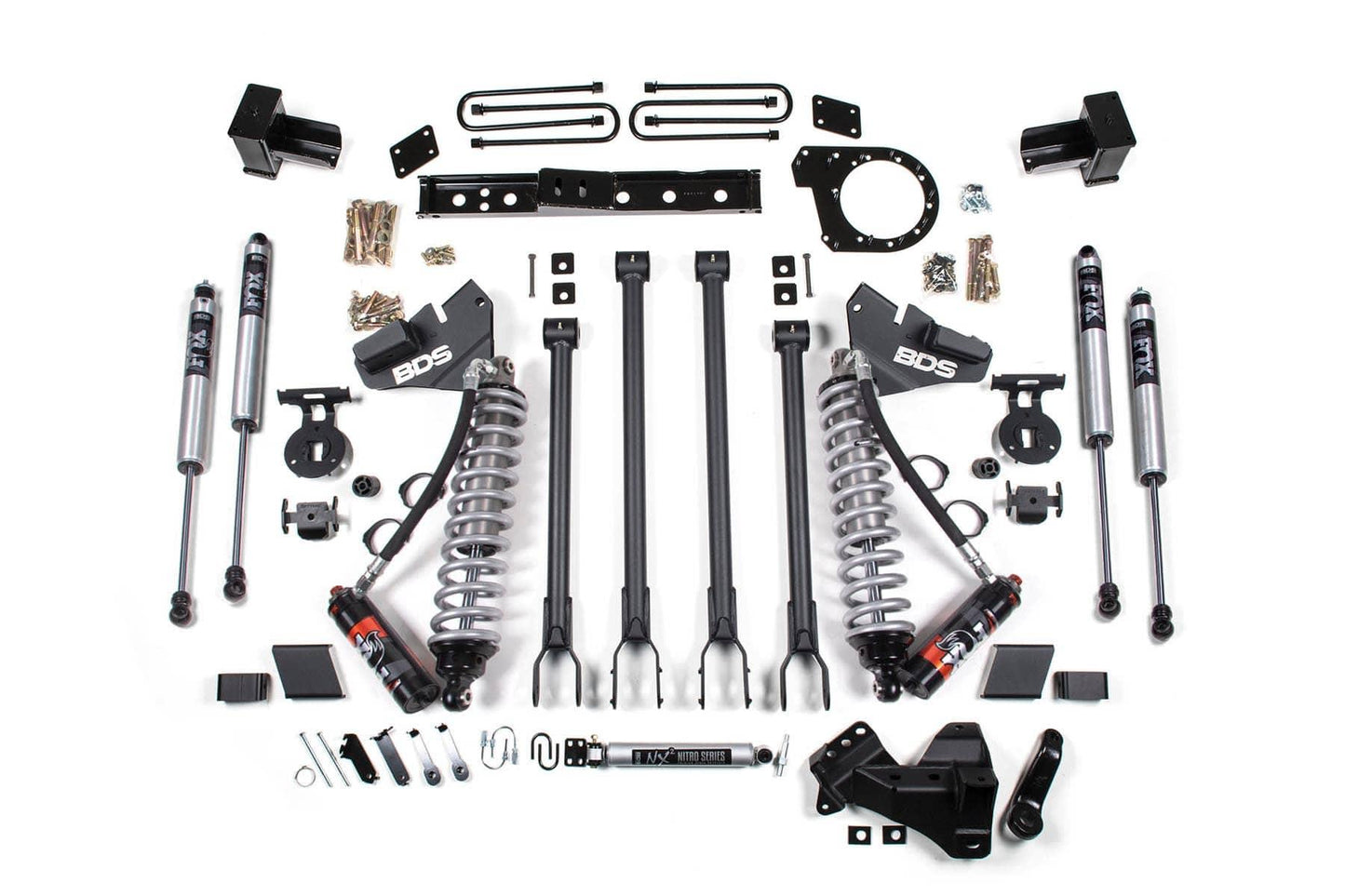

BDS 7" 4-LINK LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE COIL-OVERS & FOX 2.0 SHOCKS | 20-22 SUPER DUTY 4WD DIESEL
FOX 2.5 Coil-Over mounts in factory coil bucket location.
Adds additional secondary FOX 2.0 shock for max performance.
Eibach coil springs ride smooth through the roughest terrain.
Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel.
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling.
Fabricated steel blocks provide level stance from front to rear.
FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Important Note: Ford recommends the replacement of the pitman arm nut after each time it has been removed. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper. If your truck is equipped with a factory rear sway bar add: BDS-123808. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS-123402. Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models. Larger tires on the stock wheel are not recommended due to the brake line clearance required. Use recommended specs listed in the wheel and tire fitment section. The indexing ring is only compatible with 10-speed transmission trucks. Please verify your truck's equipment before installing it. Indexing Ring has NOT been designed to work on manual shift transfer case models. Modification of the shift ca
