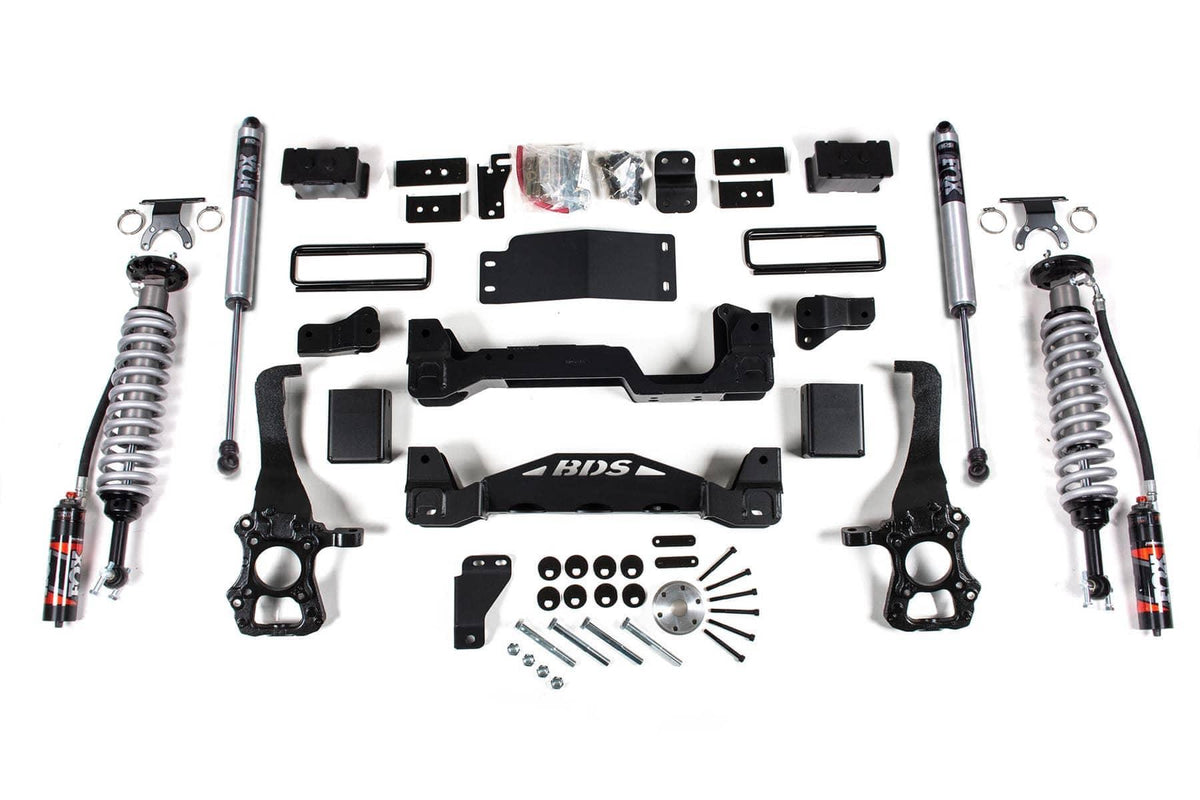

BDS 6" LIFT KIT WITH FOX 2.5 COIL-OVERS AND FOX 2.0 REAR SHOCKS 15-20 F-150 4WD
FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain.
DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs.
High clearance crossmembers improve strength and offroad capability.
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility.
Top mounted strut spacers to provide lift and install easily.
Differential skid plate for improved offroad protection.
Rear lift blocks and u-bolts to lift and level the stance.
Important Note: Requires frame bracket modification. 18" wheels with 5-5.5" total backspacing should be tested before mounting to ensure proper clearance to BDS steering knuckle. 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires. The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit BDS-122406. This system WILL WORK on Diesel Models. Will not fit HD models (7 lug). This kit is FMVSS No.126 Compliant.
Share
Fits these vehicles
1 vehicle listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
