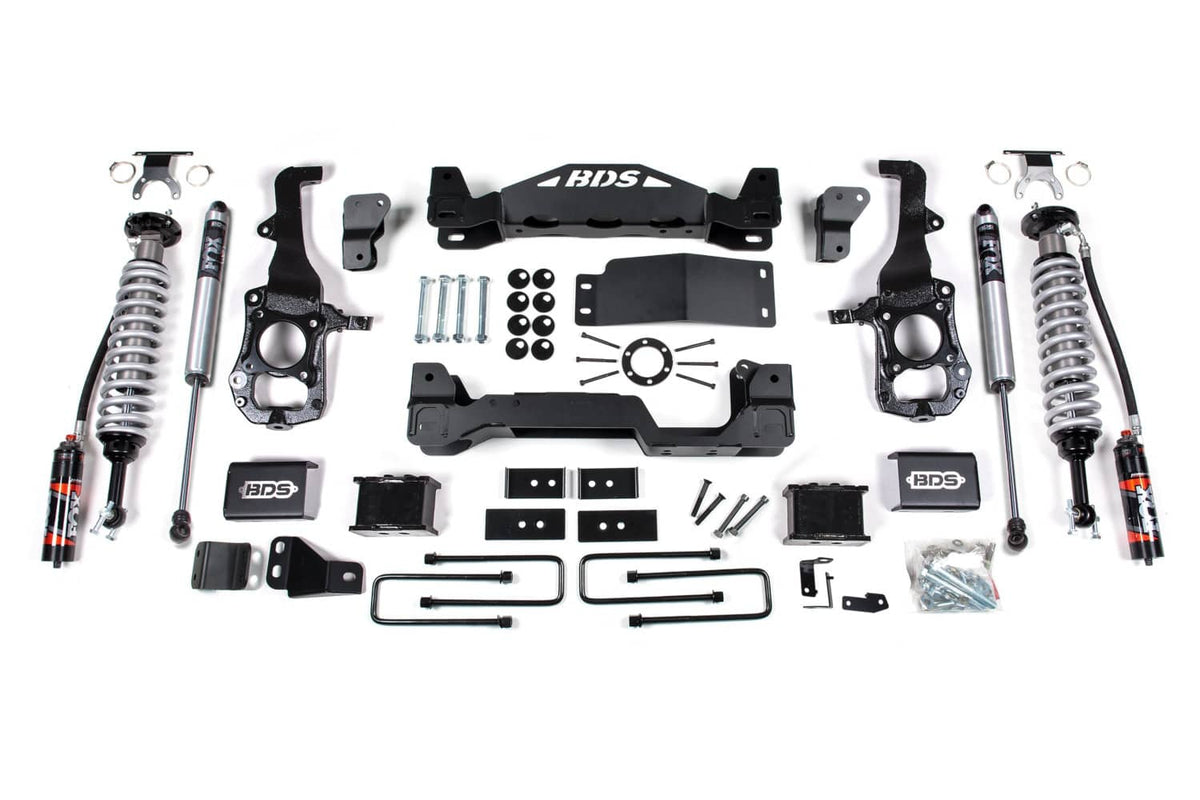

BDS 6" LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE COIL-OVERS AND FOX 2.0 REAR SHOCKS | 21-26 F150 4WD
FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain.
DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs.
High clearance crossmembers improve strength and offroad capability.
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility.
Top mounted strut spacers to provide lift and install easily.
Differential skid plate for improved offroad protection.
Rear lift blocks and u-bolts to lift and level the stance.
Functions with Blue Cruise.
Important Note: 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire. 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance. Models with 2-piece rear driveshaft WILL require carrier bearing shim kit BDS-122406 (not included w/ kit). Block kits replace factory 1-1/4" block. The stock block will not be reinstalled. Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety. Does NOT fit diesel models. Will not work with Tremor models. Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure
