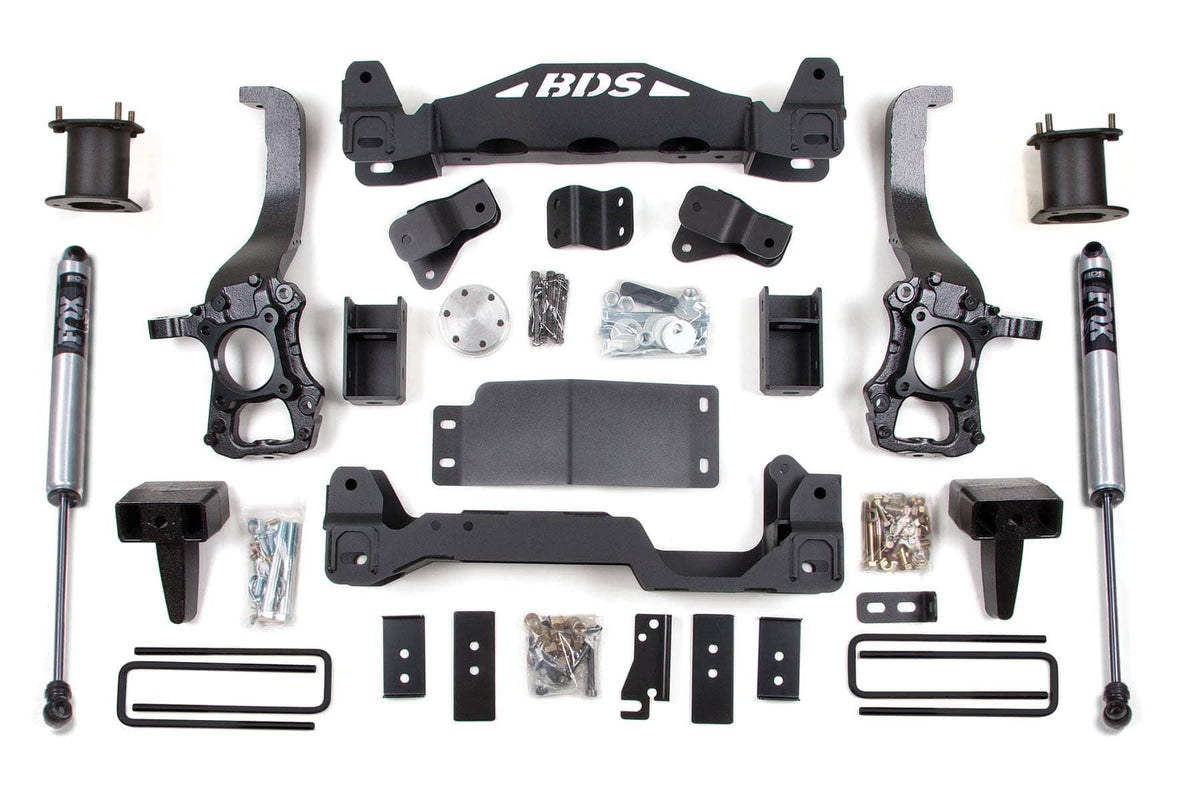

BDS 6" LIFT KIT WITH 5" BLOCK AND FOX 2.0 SHOCKS | 2014 F150 (EXCLUDING RAPTOR) 4WD
High clearance crossmembers improve strength and offroad capability.
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility.
Top mounted strut spacers to provide lift and install easily.
Differential skid plate for improved offroad protection.
Rear lift blocks and u-bolts to lift and level the stance.
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road.
Important Note: Requires frame bracket modification and welding. 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires. E-brake bracket required for factory powersteps (BDS-123018) Block kits replace factory 1-1/4" block. The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit BDS-122406. Will not fit HD models (7 lug). This kit is FMVSS No.126 Compliant.
Share
Fits these vehicles
1 vehicle listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
