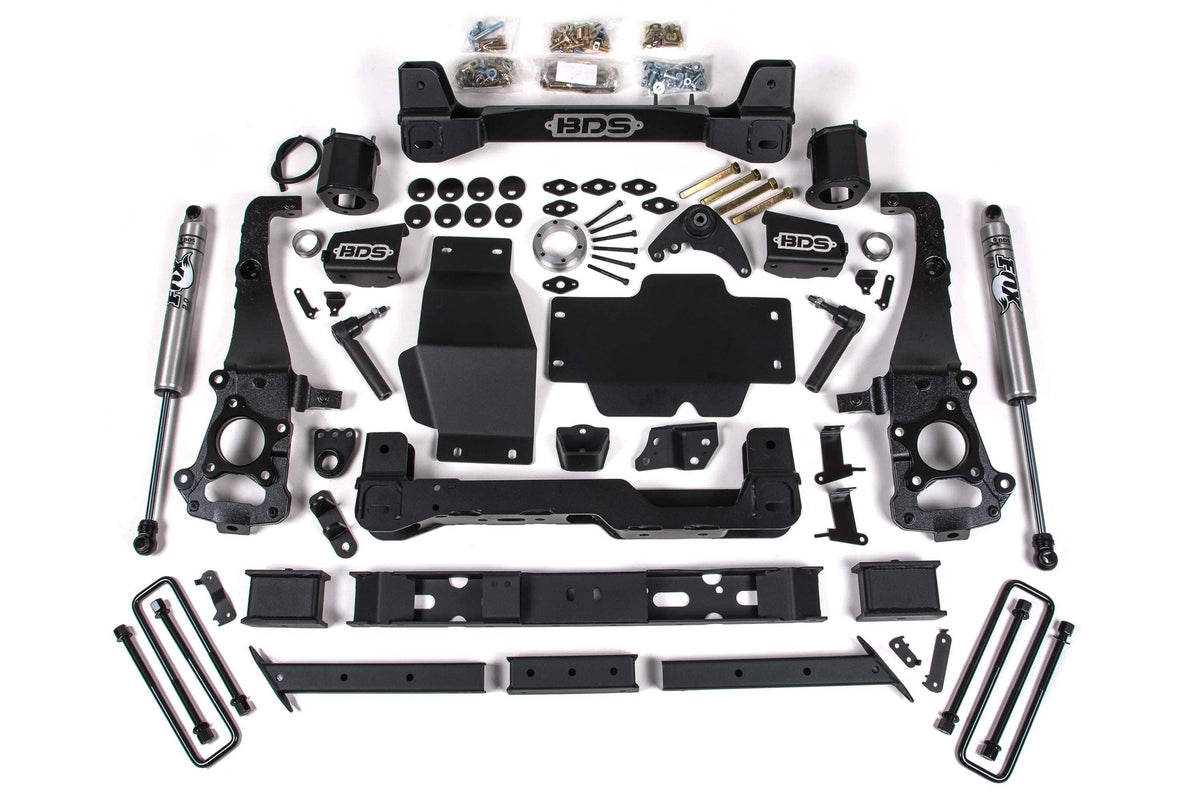

BDS 6" LIFT KIT WITH FOX 2.0 SHOCKS | 19-23 RANGER 4WD WITH CAST ALUMINUM KNUCKLES
High clearance crossmembers improve strength and offroad capability.
Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility.
Top mounted strut spacers to provide lift and install easily.
Differential skid plate for improved offroad protection.
Rear lift blocks and u-bolts to lift and level the stance.
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road.
Important Note: Ford produced two knuckle/control arm configurations in 2020-2023 model Rangers. Cast steel knuckle-equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering. Will not work on Tremor model. Requires frame bracket and differential modification. If using a plasma cutter for frame bracket mod, disconnecting the battery is highly recommended. Stock 17-18" wheels cannot be reinstalled. When balancing tires for 17-18" wheels, wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end. Rack and Pinion steering is sensitive to tire choice. Aggressive tires, smaller backspacing or tires that require several wheel weights may induce steering wheel wobble.
Share
Fits these vehicles
1 vehicle listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
