6" LIFT KIT W/ FOX 2.0 IFP SHOCKS 2014 F-150 (EXC. RAPTOR)

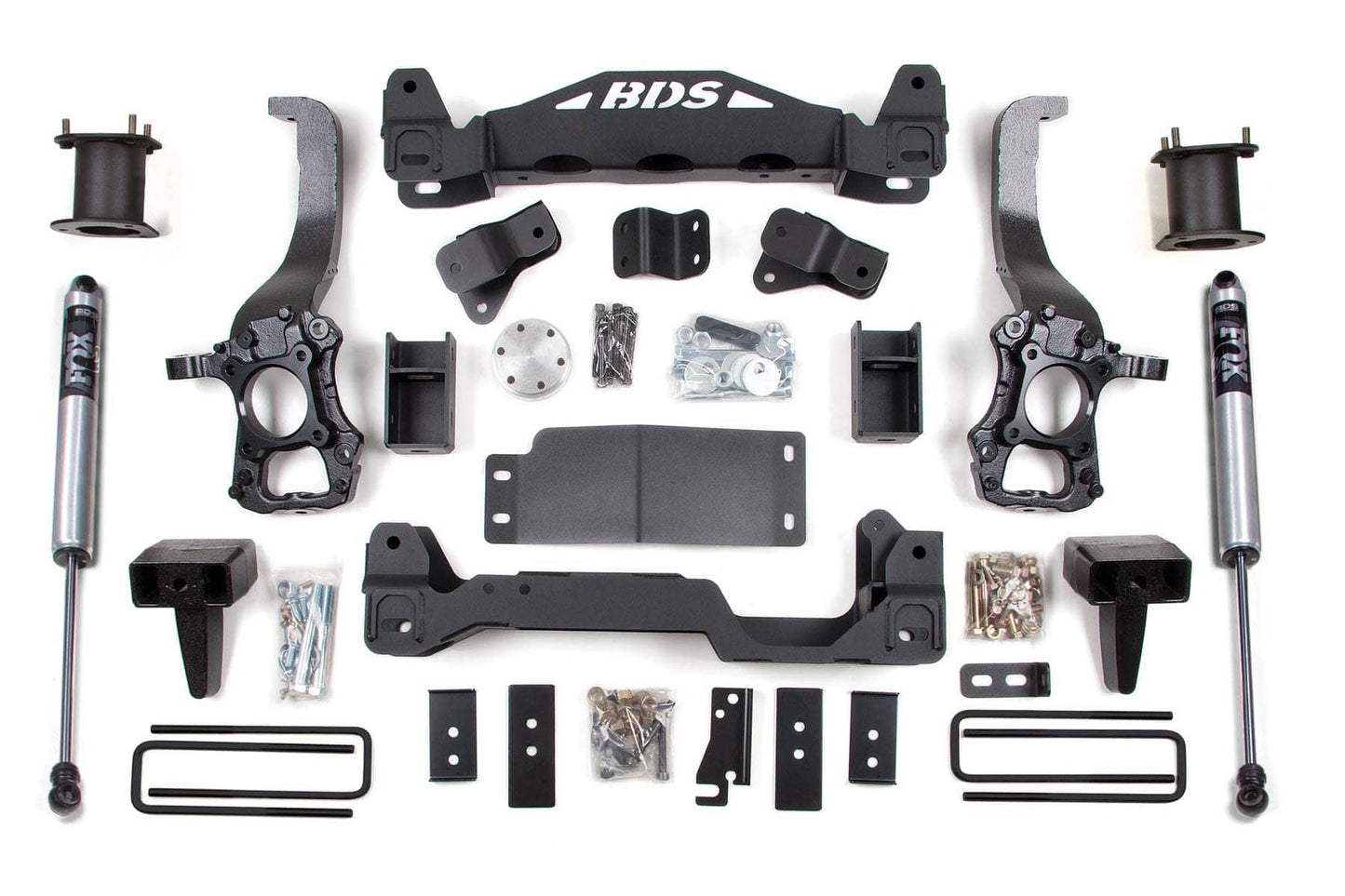

BDS 6" LIFT KIT WITH 5" REAR BLOCKS AND FOX 2.0 IFP SHOCKS | 2014 F-150 (EXC. RAPTOR) 4WD

• High clearance crossmembers improve strength and offroad capability.
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility.
• Top mounted strut spacers to provide lift and install easily.
• Differential skid plate for improved offroad protection.
• Rear lift blocks and u-bolts to lift and level the stance.
• Standard NX2 Nitro shocks with vehicle-specific valving for better control.
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road.

Important Note: Requires frame bracket modification and welding. 18" wheels with 5-5.5" total backspacing should be test fit prior to mounting the tire to ensure proper clearance to BDS steering knuckle. 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires. E-brake bracket required for factory powersteps (BDS-123018) Block kits replace factory 1-1/4" block. The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit BDS-122406. Will not fit HD models (7 lug). This kit is FMVSS No.126 Compliant.
