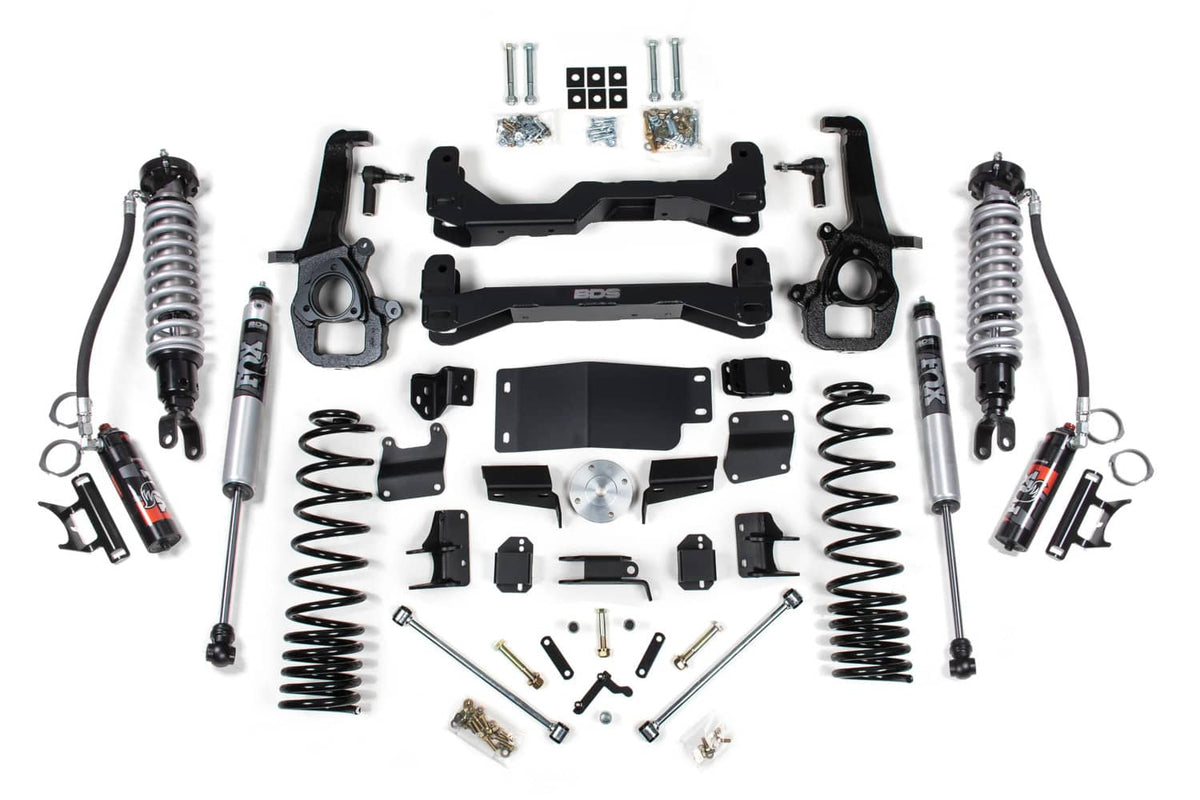

BDS 6" LIFT KIT WITH 5" REAR LIFT AND FOX COIL-OVERS AND SHOCKS | 25-26 RAM 1500 WITH STANDARD BORE KNUCKLES (EXCLUDING MODELS WITH FACTORY 22" WHEELS)
Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance.
HD skid plate system improved offroad protection Multi point differential relocation brackets to secure the front axle and improve CV angles.
FOX performance series IFP gas rear shocks to improved ride and offroad performance.
Factory Protection Plus drivetrain warranty included.
Important Note: Fits 4WD models only. Fits models with 3.0L Hurricane I6, 3.6L V6, and 5.7L V8 engines. RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ. Will NOT fit adjustable "air ride" suspension equipped models. Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size. Will NOT work on diesel models. Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P. Disconnect BOTH batteries (if equipped), Main and Auxilary before performing install, more detail in instructions. Bumper Spacer Kit (BDS-122004) recommended for additional tire-to-fender clearance. Sold separately. Included Replacement front brake lines (BDS-22545) do not work on 2025 model year trucks, relocation bracket is used instead. See instructions for bracket details.
