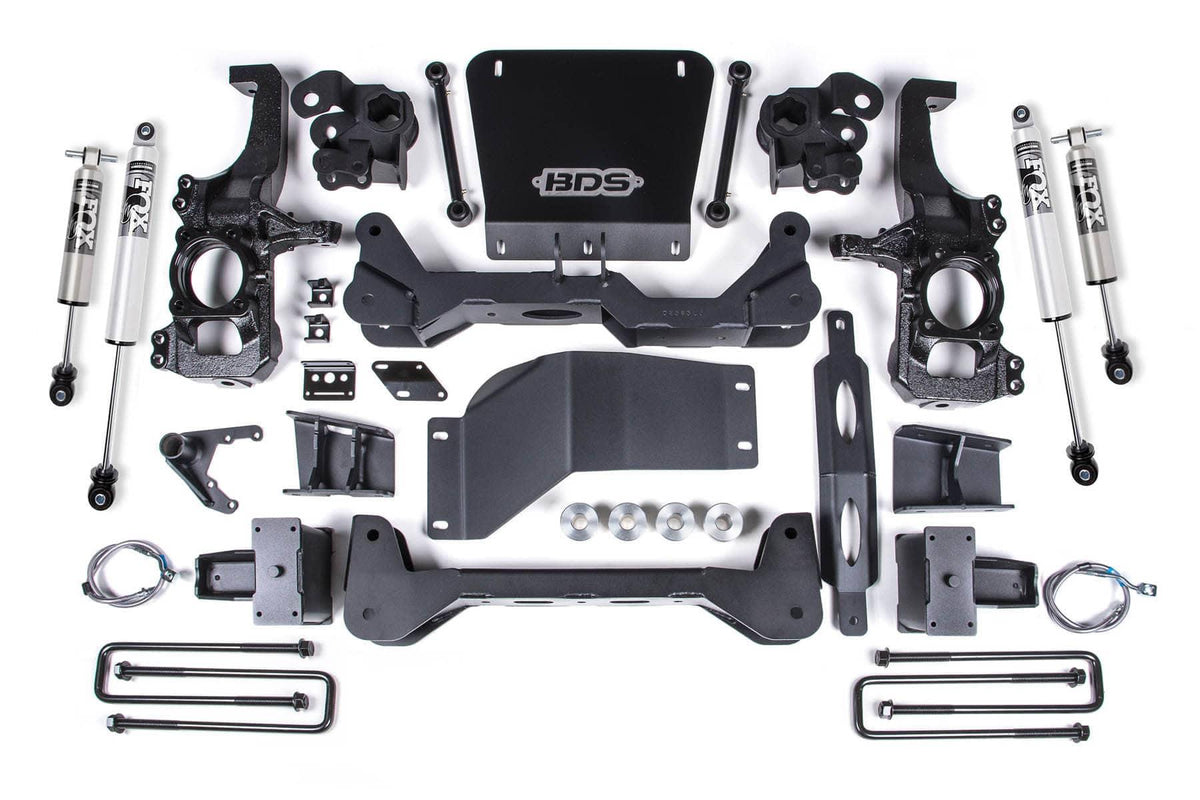

BDS 6.5" LIFT WITH FOX 2.5 PERFORMANCE SERIES HTO SHOCKS | 20-26 SILVERADO/SIERRA 2500HD/3500HD 4WD DIESEL WITHOUT OVERLOADS
High clearance design with no torsion bar drop brackets.
Robust steering knuckles maintain ESC system compliance.
HD skid plate system improved off road protection.
Multpoint differential relocation brackets to secure the front axle and improve CV angles.
Factory Protection Plus drivetrain warranty included.
Important Note: Requires frame bracket modification. Torsion Bar Tool required to load/unload torsion bars, The GM specified tool is #CH48809. Models with twopiece rear driveshafts will require a carrier bearing drop kit. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire. In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft. Some minor trimming will be required with certain wheel/tire combination. Further trimming tips are included at the end of this instruction sheet. Will NOT work with AT4X or ZR2 models, lower control arm profile is different.
