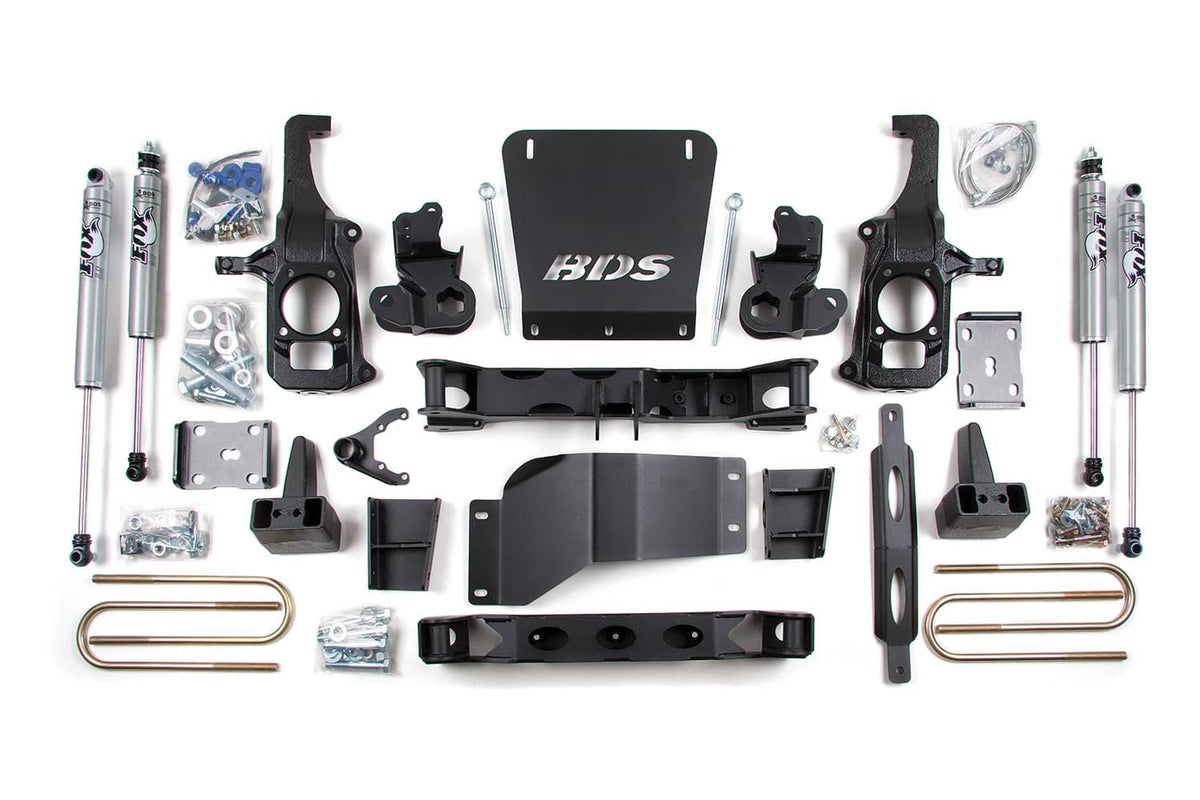

6.5" Lift Kit w/ 3" Rear Block Kit

• High Clearance design w/ no torsion bar drop maximizes ground clearance.
• Robust steering knuckles maintain ESC system compliance.
• HD skid plate system improved offroad protection.
• Multipoint differential relocation brackets to secure the front axle and improve CV angles.
• Factory Protection Plus drivetrain warranty included.

Important Note: Torsion Bar Tool required to load/unload the torsion bars. This variant (3" rear block kit) is recommended for dually applications. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" x 8.5" wheels with 6.18" backspacing MAY fit with a max tire size of 37x12.50 on certain tire sidewall profiles due to clearance to the steering knuckle and sway bar. A minimum 1/4" wheel spacer may be required due to tire side wall profile variations. A wider tire will cause clearance issues with the steering knuckle. Factory dually wheels cannot be reinstalled. Models with two piece rear driveshaft may require BDS-121612. If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
