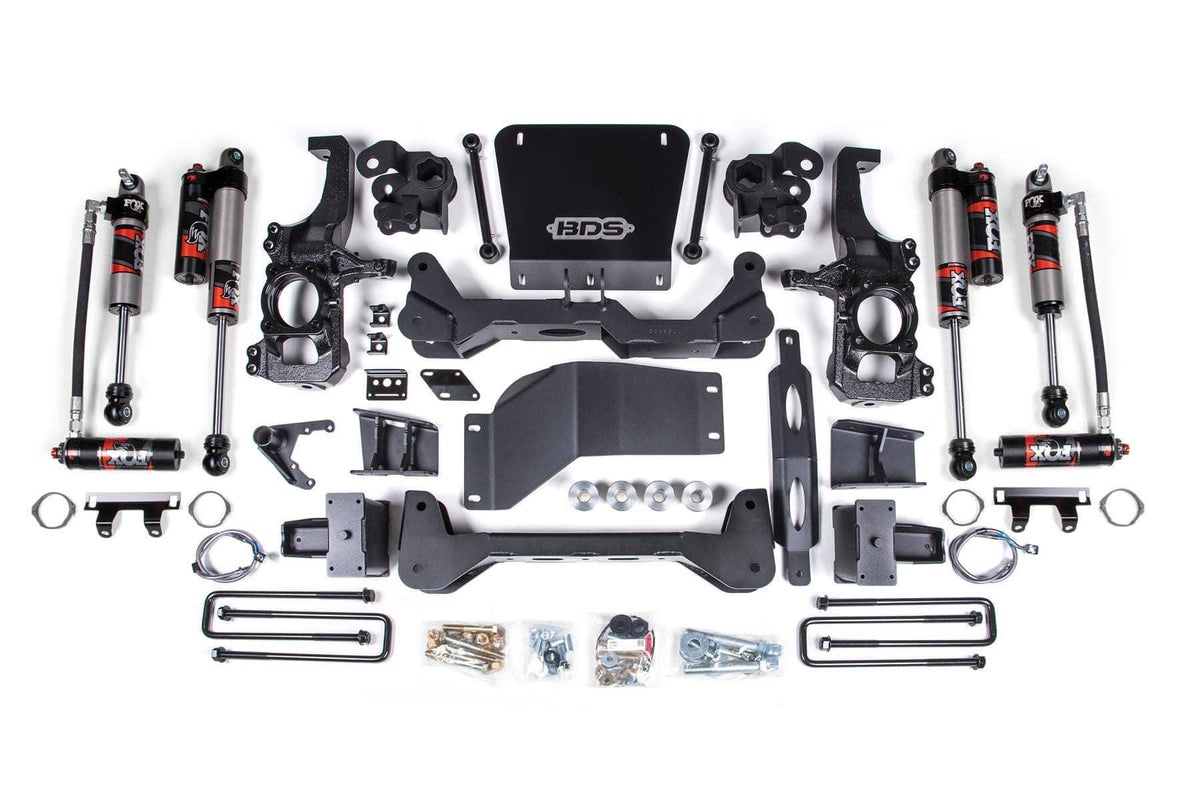

BDS 6.5" LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE SHOCKS | 20-26 SILVERADO/SIERRA 2500HD/3500HD 4WD WITH OVERLOAD SPRINGS
High Clearance design w/ no torsion bar drop maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
HD ski plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
FOX 2.5 shocks designed specifically for increase travel and the ability to soak up the roughest terrain
DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
Important Note: For DRW models, use this kit (with overload rear lift). Requires frame bracket modification. Torsion Bar Tool required to load/unload torsion bars. Models with two-piece rear driveshafts will require a carrier bearing drop kit. Factory 17-18" wheels cannot be reinstalled due to tie rod end interference, stock 20" wheels can be reinstalled with up to a 35x12.50 tire. In some cases, vehicles used in 4WD on the highway frequently could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft. Do not install this suspension system in conjunction with any type of torsion bar lift keys to achieve more than the tested 6.5" lift height. Some minor trim will be required with certain wheel/tire combinations. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks. Trimming will normally include the bottom edge of the in
Share
Fits these vehicles
4 vehicles listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
