ZONE 5" SUSPENSION LIFT KIT FOX 2.0 ADVENTURE SERIES SHOCKS REAR | 21-26 FORD F150 TREMOR 4WD

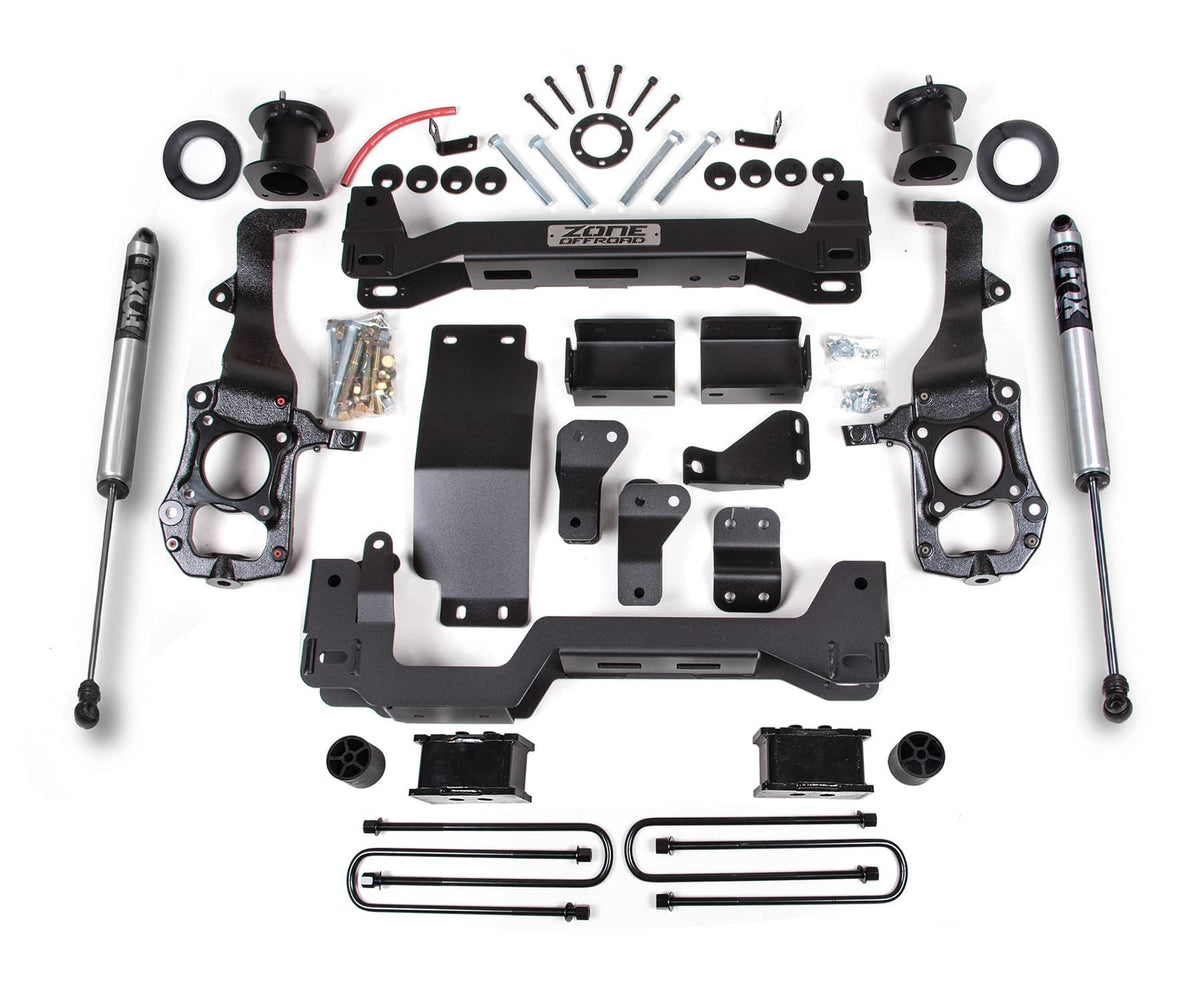

High strength crossmembers to correct lower control arm positioning
Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
Top mounted strut spacers to provide lift and install easily Differential skid plate for improved offroad protection
Rear lift blocks and u-bolts to lift and level the stance
Sway bar, brake line and bump stop relocation brackets to correct operating angles
Important Note: 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire. Models with 2-piece rear driveshaft WILL require carrier bearing shim kit D5405 (not included w/ kit). Crash bars may require modification based on wheel and tire choice. It is the end users responsibility to ensure modifications are non-detrimental to vehicle safety. Requires frame bracket modification Will fit models with 4 Auto that do not have the 4WD actuator hub assembly.
Share
Fits these vehicles
1 vehicle listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
