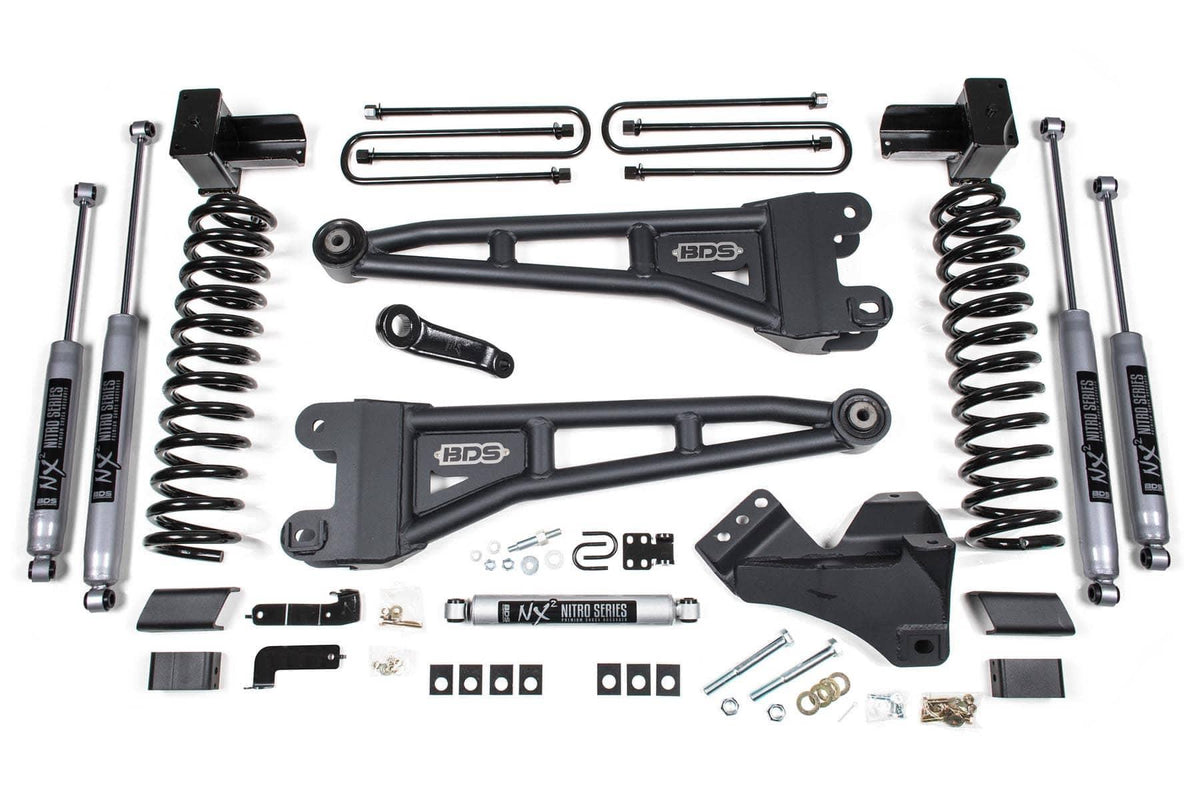

5" RADIUS ARM LIFT KIT WITH FOX 2.0 SHOCKS | 20-22 SUPER DUTY 4WD GAS
Easy, 100% Bolt-on installation.
Pro-Ride dual rate coil springs provide a remarkable ride through any terrain.
Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance.
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling.
Fabricated steel blocks provide level stance from front to rear.
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road.
Important Note: Ford recommends the replacement of the pitman arm nut after each time it has been removed. If installed on a truck with a top-mounted overload spring, an overload spacer block taller than 1-1/8" is required. Use BDS-UBT4027 (Qty: 4) sold separately. . Front exhaust modification may be required to clear the front drive shaft. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS-123402. Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models. Larger tires on the stock wheels are not recommended due to the brake line clearance required. Maximum recommended wheel size: 37"x12.5" Tire on 20"x9" rim with +0mm offset. (Trimming may be required). Installation requires a torque wrenc
Share
Fits these vehicles
2 vehicles listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
