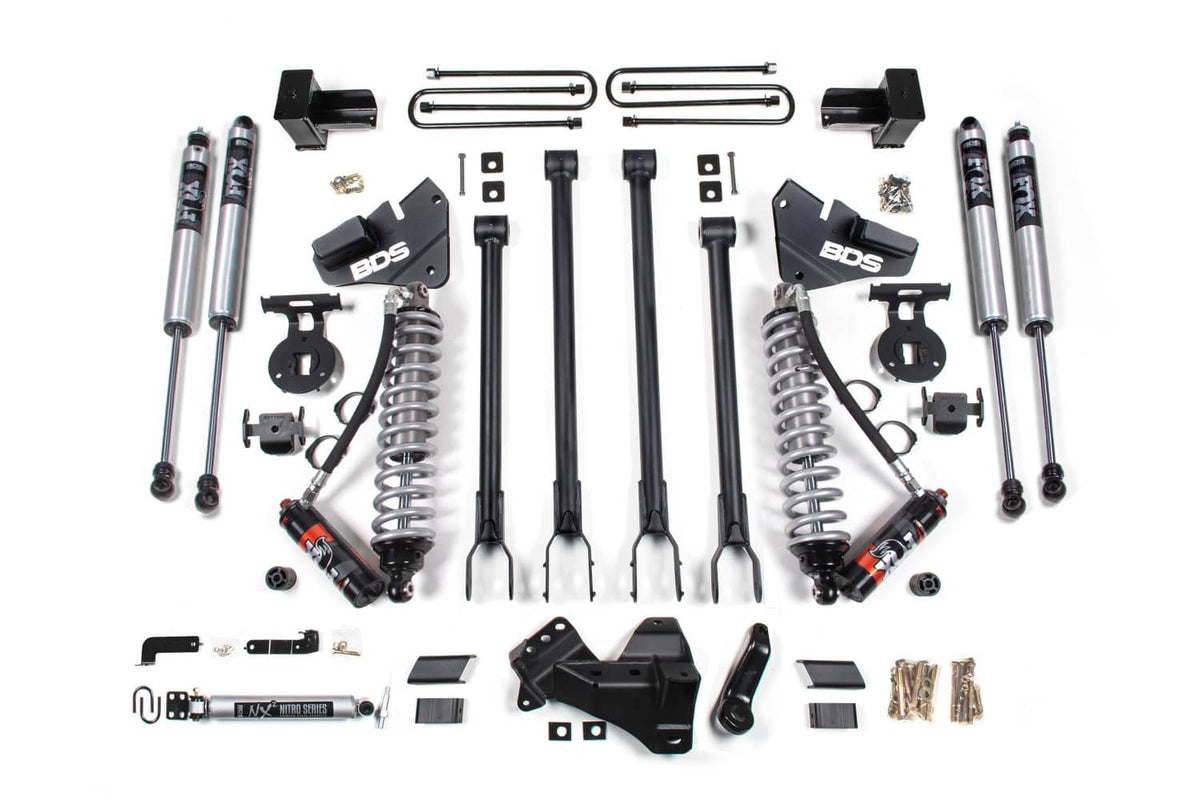

BDS 4-LINK 5" LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE COIL-OVER CONVERSION & FOX 2.0 REAR SHOCKS | 20-22 SUPER DUTY 4WD DIESEL
FOX 2.5 Coil-Over mounts in factory coil bucket location.
Adds additional secondary FOX 2.0 shock for max performance.
Eibach coil springs ride smooth through the roughest terrain.
Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel.
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling.
Fabricated steel blocks provide level stance from front to rear.
FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
Important Note: Ford recommends the replacement of the pitman arm nut after each time it has been removed. If installed on a truck with a top-mounted overload spring, with an overload spacer block taller than 1-1/8" BDS-UBT4027 (Qty: 4) is required. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS-123402. Due to the taller factory ride height, Tremor models will not net the full advertised lift height. The final ride height will be the same as standard models. Larger tires on the stock wheel are not recommended due to the brake line clearance required. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups. Installation requires a torque wrench capable of 405 ft-lbs. Some trucks with a rear driveline vibration may have a recall from Ford regardin
Share
Fits these vehicles
2 vehicles listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
