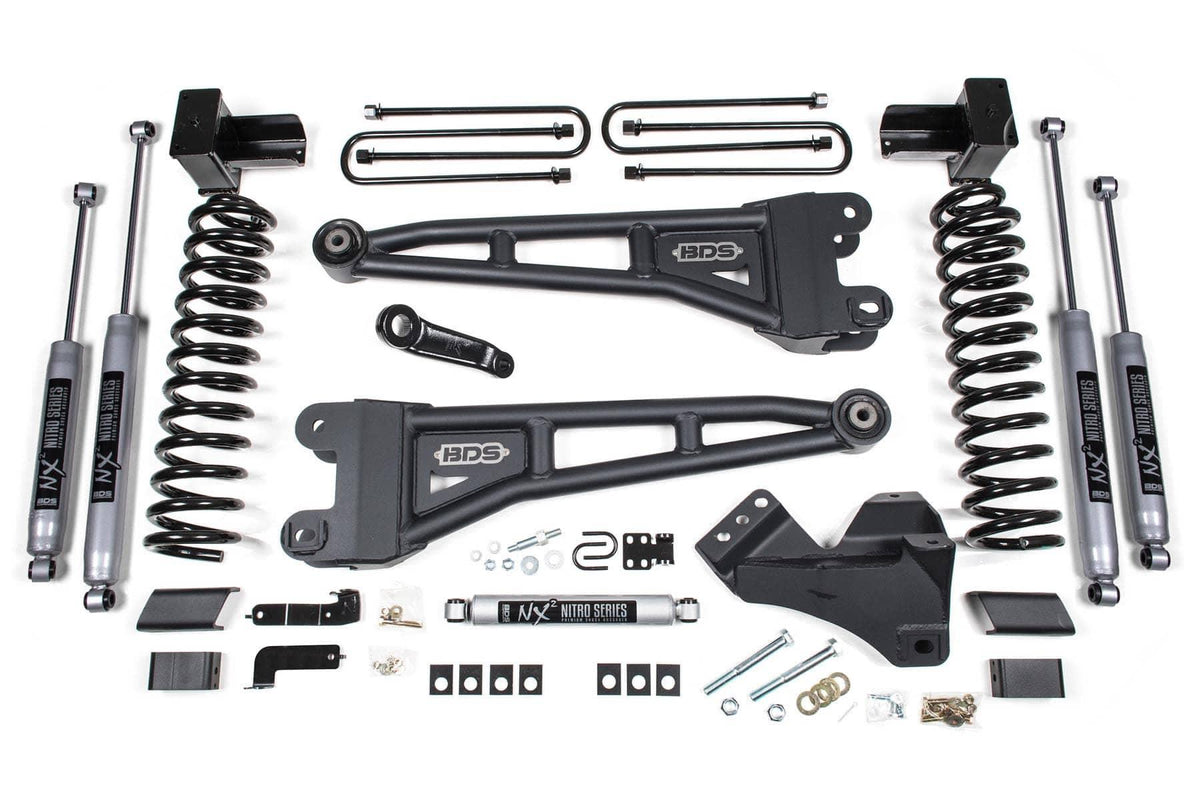

BDS 5" LIFT KIT WITH 5" REAR BLOCK KIT AND NX2 SHOCKS | 23-26 F-250/F-350 SUPER DUTY DIESEL WITHOUT OVERLOAD SPRINGS
Easy, 100% Bolt-on installation.
Pro-Ride dual rate coil springs provide a remarkable ride through any terrain.
Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance.
Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling.
Fabricated steel blocks provide level stance from front to rear.
Important Note: Vehicles with radius arm mounted ride height sensors will require BDS-123303. Ford recommends the replacement of the pitman arm nut after each time it has been removed. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS-123402. Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models. Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups. Installation requires a torque wrench capable of 406 ft-lbs. Fits SRW models only. Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and rangi
