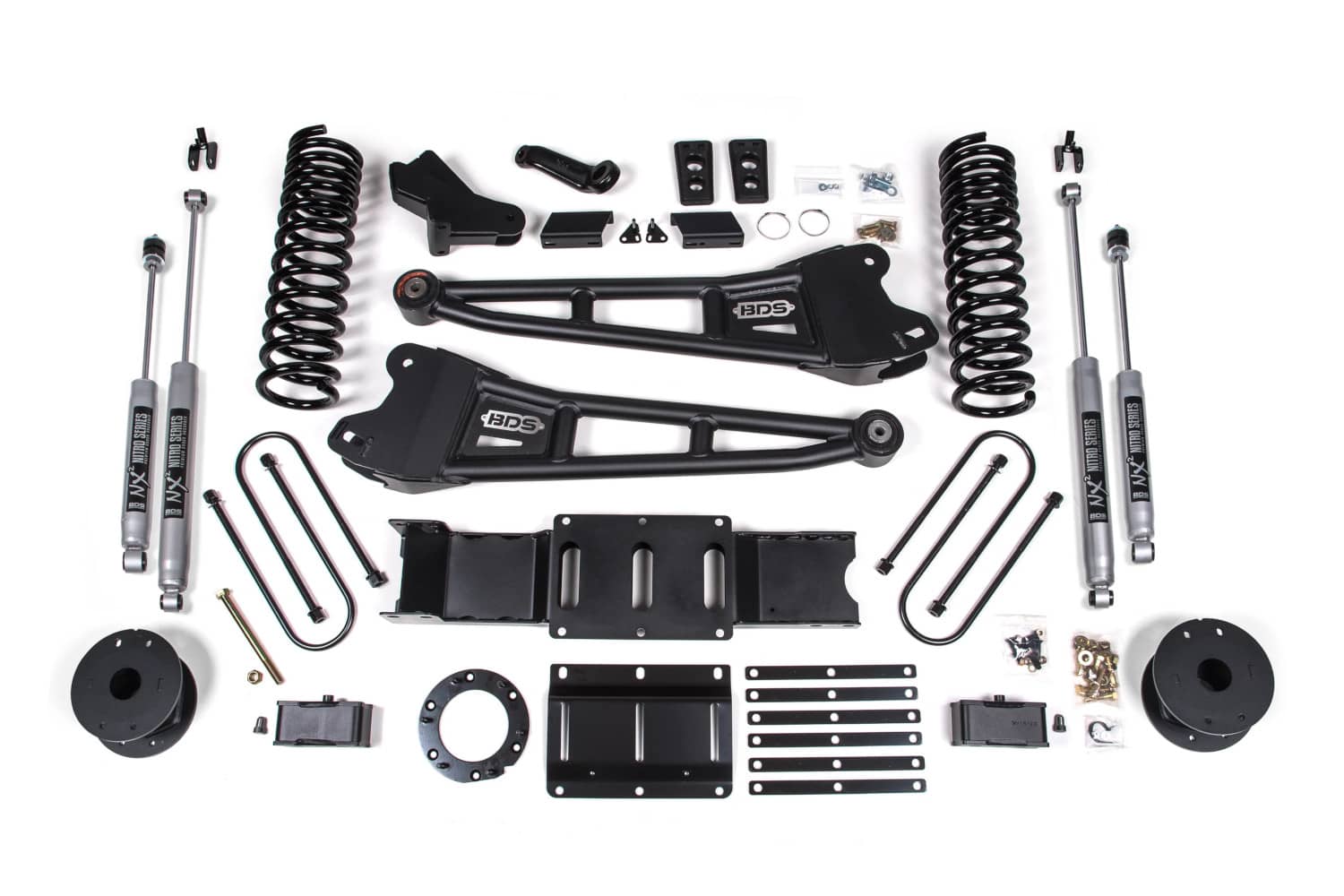

BDS 4" RADIUS ARM LIFT KIT WITH NX2 SHOCKS WITH 3" REAR LIFT | 19-24 RAM 3500 DIESEL WITH REAR AIR RIDE AND WITH 8 BOLT INDEX RING
Heavy duty tubular radius arms improve strength, handling and caster control.
Front high strength progressive rate coil springs for a great ride on any terrain.
Front track bar relocation bracket to re-position axle.
Forged drop pitman arm to correct steering angles.
Front sway bar correction to maintain handling performance.
HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts.
BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance.
Important Note: Fits OE equipped air ride systems only. Dually with 8-bolt Transmission (Aisin), require BDS-122409 Def Relocation Kit. Mega Cabs with 8-bolt Transmission (Aisin), require BDS-122409 Def Relocation Kit. Vehicles equipped with a Manual T-case requires BDS-122423 Manual transfer case shifter extension. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS-122406 Carrier bearing drop.
Share
Fits these vehicles
1 vehicle listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
