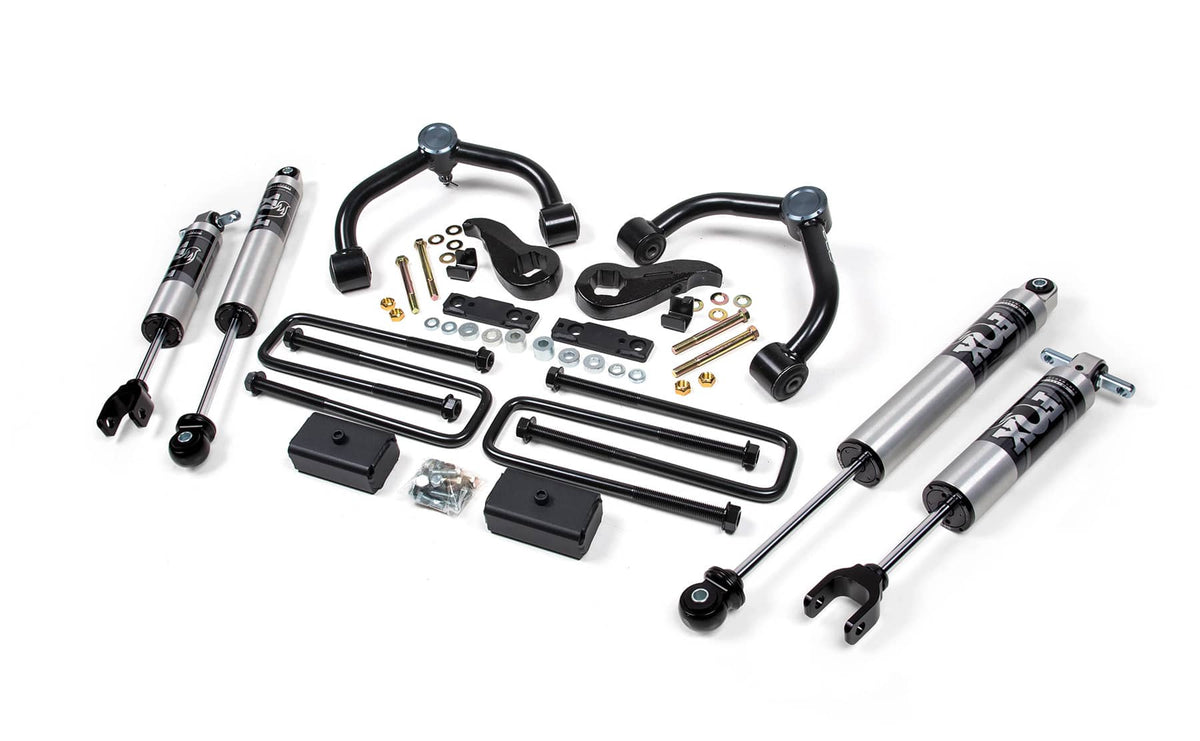

BDS 3" LIFT KIT WITH FOX 2.5 PERFORMANCE SERIES HTO SHOCKS | 20-26 SILVERADO/SIERRA HD WITH OVERLOADS (EXCLUDING AT4X/ZR2)
FOX 2.5 PS IFP Performance Series shocks offer improved performance and damper capacity.
Performance UCAs increase strength and allow for more suspension travel.
High strength cast torsion bar keys use an indexed design to provide additional ride height.
Sway bar relocation for proper clearance.
Differential relocation to improve CV operating angle.
Rear block and u-bolt kit provides lift while maintaining spring function and load capacity.
Important Note: Fitment includes Dually models. Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool. The GM specified tool #CH48809. Some minor trimming may be necessary to fit certain wheel/tire combination. This is normal with most aftermarket tire/wheel fitment on Chevy/GM trucks and typically consists of trimming the bottom edge of the inner fender shrouds and/or lower corner of front bumper valance. Further trimming tips are included at the end of this instruction sheet. Stock wheels and stock tires can be installed, but depending upon alignment and tire profile will be tight to the ball joint cup. Wheel spacers may be required to use stock wheels and stock tires. Will NOT work with AT4X or ZR2 models, lower control arm profile is different.
Share
Fits these vehicles
4 vehicles listed by the manufacturer for this part.
Always confirm the fit for your exact trim before ordering — ask us if you are unsure.
