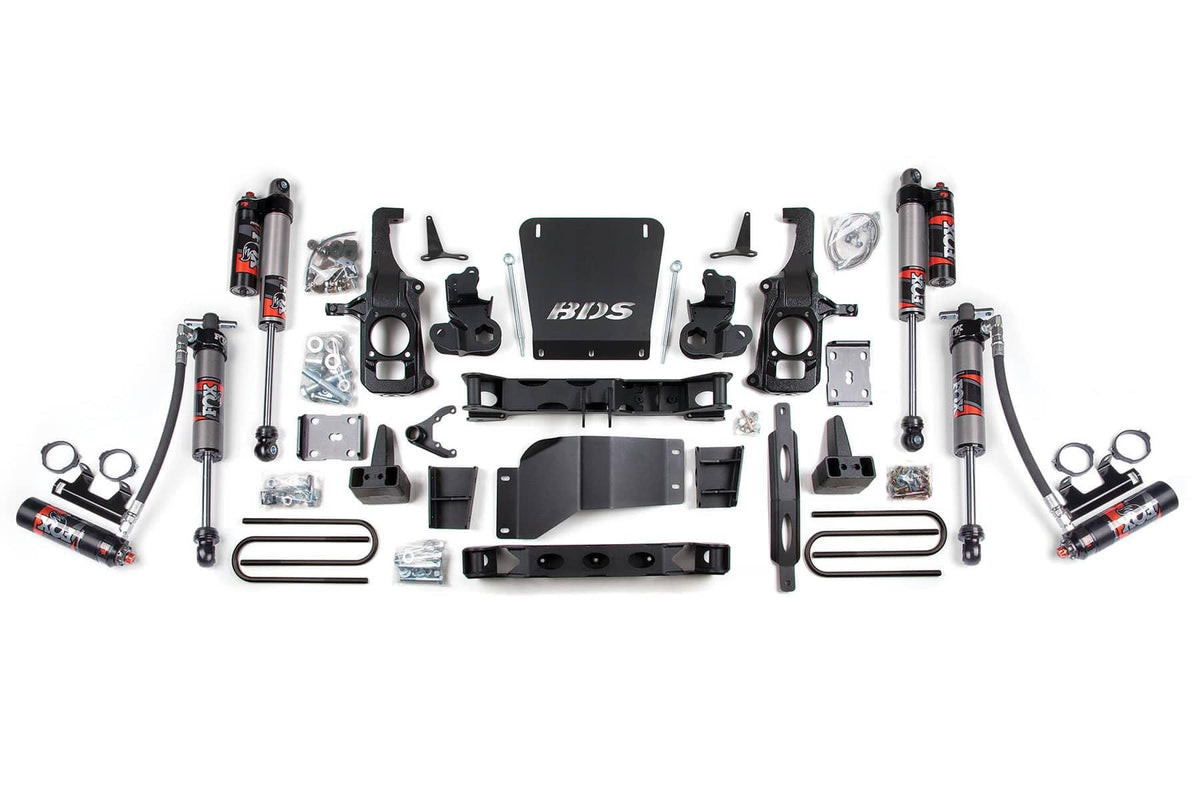

BDS 6.5" LIFT KIT WITH 5" BLOCKS AND FOX 2.5 PERFORMANCE ELITE SHOCKS | 11-19 SILVERADO/SIERRA 2500HD/3500HD WITHOUT OE OVERLOADS
High Clearance design w/ no torsion bar drop maximizes ground clearance.
Robust steering knuckles maintain ESC system compliance.
HD skid plate system improved offroad protection.
Multipoint differential relocation brackets to secure the front axle and improve CV angles.
Factory Protection Plus drivetrain warranty included.
Important Note: Torsion Bar Tool required to load/unload the torsion bars. 5" rear block kit (this kit) will not fit dually applications. 3" rear block kit recommended for dually applications. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" x 8.5" wheels with 6.18" backspaing MAY fit with a max tire size of 37x12.50 on certain tire sidewall profiles due to clearance to the steering knuckle and sway bar. A minimum 1/4" wheel spacer may be required due to tire side wall profile variations. A wider tire will cause clearance issues with the steering knuckle. Factory dually wheels cannot be reinstalled. Models with two piece rear driveshaft may require BDS-121612. If minor front driveline vibration occurs at highway speeds while in 4wd and the vehicle will be used in this situation on a regular basis, we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
